Automatic Solar Tracker Minimum Energy Consumption
Working principle:
Single axis automatic tracking system are used to minimize the angle of incidence between the incoming sunlight and a photovoltaic panel. Reducing this angle increases the amount of energy produced from a fixed amount of installed power generating capacity. As the pricing, reliability and performance of single-axis trackers have improved, the systems have been installed in an increasing percentage of utility-scale projects.
Advantages:
1. Lowest and optimized production cost
Through project design, the engineers help to offer simplest assembly and rapid installation results in costs and efficient construction schedules.
2. Minimum annual power consumption
During the overcast sky, the Good future solar tracker will move the horizontal position to absorbed all the diffused light.
3. Low maintenance and Outstanding longevity
The drivers will move the solar panel to slow position automatically at high wind speeds, this will protect the system from over-travel and increased solar system service life. The simple and robust design requires minimum maintenance.
4. Independently developed MCU microcomputer control system;
5. Intelligent battery management system (BMS) and automatic alarm functions can ensure the system's long-term reliable operation.
Technical Parameters of Automatic Solar Tracker Minimum Energy Consumption
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Foundation Options | All foundation types |
| Terrain Adaption | Up to 20% N-S slope |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Abaout us:
Good future solar has a professional management team, we have gains rich experiences on the solar power generation, and the designing, manufacturing, commissioning of the single axis tracking system. Our company always values customer's needs as the highest priority, ready to provides technical support to our customers at any time, to solve their problems in the operation of PV power plant and solar tracking system. With the mission of developing clean energy and protecting the environment, we believe that through close cooperation with domestic and foreign customers, we will continue to innovate in technology and management, and create a bright future of clean energy!
Product Tags:
|
|

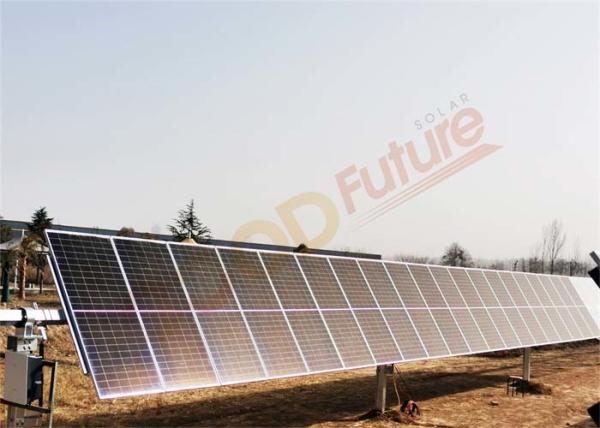

HWL Automatic Solar Tracker 90 Modules Single Axis Tracker Images
|
